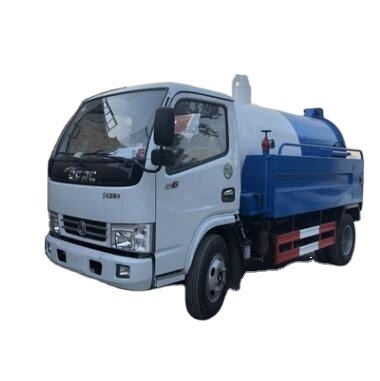

Sewage Suction Truck with Vacuum Pump for Sucking Waste
1. Introduction
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in China in 2003, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.
We export commercial vehicles cover all series of Dongfeng Brand.
2. Feature
Warranty Period: 6 months(calculating from the date the vehicle arrives at the destination port) or 30,000 kilometers, whichever comes first.
Specification | ||||
Drive mode | 4×2 | |||
Chassis model | EQ1063 | |||
Engine | Model | CY4102-C3C | ||
Type | 4-cylinder in line, water cooling, inter cooling, turbocharging, vertical engine | |||
Power/Displacement(Kw/ml) | 88/3856 | |||
Type OF Fuel | Diesel | |||
Cab | CPB12-K | Single berth | ||
Capacity | 3 persons | |||
No of Spring leaves | 8/9+5 | |||
Tyre | Size | 7.50-16 | ||
Air conditioner | A/C | |||
Dimensions | Outer dimension (mm) | 6890×2220×2510 | ||
Wheel base (mm) | 3800 | |||
Front/Rear tread(mm) | 1750/1856 | |||
Performance | Max. speed(km/h) | 90 | ||
Mass | Payload (kg) | 2850 | ||
Curb weight((kg) | 3700 | |||
G.V.W (kg) | 6500 | |||
Specifications of Tank | Effictive Volume (m³) | 3 | ||
Outer dimension (Length×Macro axis×Minor axis)(mm) | 3500×1100×700 | |||
Vacuum Pump Model | XD-70 | |||
Suitable revolution(min/rpm) | 1400 | |||
Vacuum Degree(mmHg) | ≥500 | |||
Effictive Suction Length(m) | ≥6 | |||
Time of pumping(min) | ≤5 | |||
Special configration | PTO, tansmission shaft, vacuum pump, fecal tank, pipe network systerm, visible soil pipe, hand-washing facilities |
Other Fecal Suction Sewage Truck:
