Home /Products/Garbage Collection Truck/5Tons Compactor Garbage Truck Price 8

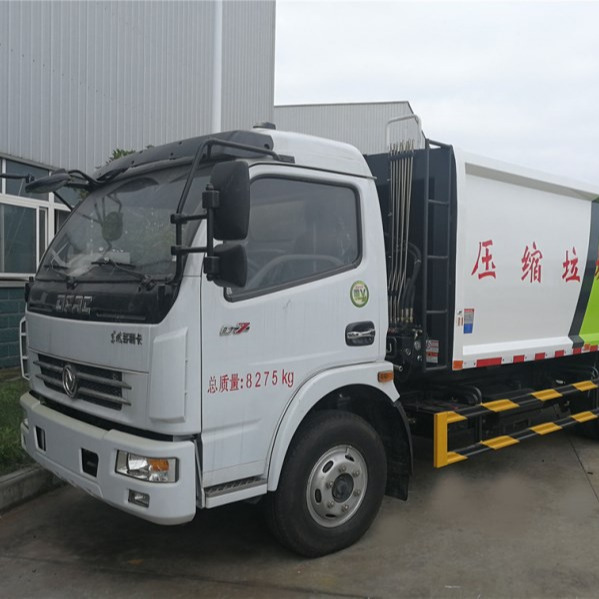

5Tons Compactor Garbage Truck Price 8

1 Unit
MOQ
$28,960.00(>=1 Units)
Price
5Tons Compactor Garbage Truck Price 8
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Transmission Type: Manual
Emission Standard: Euro 3
Fuel Type: Diesel
Dimensions (L X W X H) (mm): 7350*2220*2810
Gross Vehicle Weight: 8125
Engine Model: Cummins EQB140-30
Air Conditioner: With
Wheel Base(mm): 3800
Container Capacity(m3): 8
Thickness Of Tanker(mm): 5
Fill In Loading Time(s): 12
Color: Customer's Requirement
Chassis Brand: Dongefeng
Driving Type: 4*2
Chassis Optional: ISUZU
Basic Infomation
Model Number: Cummins EQB140-30
Payment & Shipping Terms
Product Description
Product Description
Main advantages:
1. The collection method is simple: change the dirty appearance of the garbage can in the city and eliminate the secondary pollution. 2.High compression ratio and large load: The maximum crushing pressure is 12 tons, and the load is equal to two and a half times the same tons of non-compressed garbage. 3. Operation automation: The imported computer control system is used. The driver is required to operate one person in the entire loading and unloading operation, which not only reduces the labor intensity of the sanitation workers, but also greatly improves the working environment. 4. Economical: When the special equipment is working, the computer control system automatically controls the throttle. 5. double insurance system: The operating system has the dual functions of computer control and manual control, safety protection and vehicle utilization. 6. Turning mechanism: Optional equipped with a turning mechanism with a trash can (or bucket).
Chassis model
EQ1063
Engine
CY4102-C3C
Max. power(KW/rpm)
88/3856
Max. torque(N.m)
345
Type OF Fuel
Diesel
Outer dimension (mm)
6890×2220×2510
Wheel base (mm)
3800
Front/Rear tread(mm)
1750/1586
Payload (kg)
2850
Curb weight(kg)
3700
G.V.W (kg)
6500
Container Capacity(m³)
5
Filling Mouth Grand Clearance(mm)
740
Filling Circulation Time(s)
20-25
Precompressor Load Time(s)
18-22
Precompressor Lifting Time(s)
6-9
Max. Compression Strength(T)
12
Max.Discharge Strength(T)
8
Others:
The components of the compressed garbage truck are composed of a sealed garbage compartment, a hydraulic system, a dual control system, a diversified overturning mechanism, and an operating system. The lifting oil cylinder (2) garbage compartment can be hoisted and lowered, and the working cycle time is ≤50S. The compressed garbage truck can be equipped with a rear bucket turning mechanism or a garbage bucket turning mechanism. The operation is automated, and the garbage collection method is simple and efficient. Garbage trucks can be converted into dedicated garbage trucks according to user requirements.
Detailed Images
Related Products
After Sales Service
After Sales Information
During the warranty period, once there are any parts of component damaged, we will provide the new Original Spare Parts for you for free of charge.
After the warranty period, we will provide you the new Original Spare Parts in time at the cost price as our after sale services.
24h Technical Consultation will be offered by our technical engineers in factory.
