---China’s TOP 500 Private Enterprises.
<1> Professional manufacturer of special trucks SINCE 2005.
<2> Produce different kinds of special purpose vehicles
<3> Truck chassis: all Chinese brands and JAPAN I S U Z U...etc.
<4> Steering wheel: both left and right hand drive model for different country.
<5> Emission standard: Euro 2,Euro 3,Euro 4,Euro 5,Euro 6 optional.
Welcome to contact me for latest quotation: Ms.Ruby Yan +8618627908899(WhatsApp/Wechat/Call)

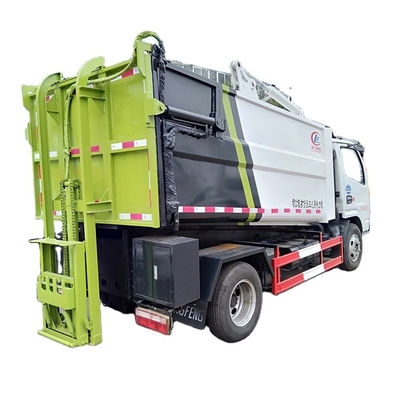

5 tons waste compactor truck garbage collection vehicle
5 tons waste compactor truck garbage collection vehicle
| Technical Parameters | |
| Overall | |
| Vehicle name | 5000 liters Garbage Compactor Truck |
| Vehicle model | CLW5076SLGT5 |
| Overall dimensions | Approximate 6300*2100*2500mm |
| GVW | 6995kg |
| Total net weight | 4900kgs |
| Loading capacity | 2000kgs |
| Max speed | 110Km/h |
| Chassis | |
| Chassis model | EQ1072G |
| Chassis brand | Dongfeng |
| Cab type | Single |
| Allowable passengers in cab | 2 |
| Wheel base | 3360mm |
| F/R axle | HF7 axle/ST16 double axles |
| F/R track base | 1504/1425mm |
| F/R suspension | 1015/1525mm |
| Approach/departure angle | 24/16° |
| Tire specification | 7.00-16 14PR,7.00R16 14PR |
| Transmission | Manual |
| Traction system | 4*2 |
| Number of axles | 2 pcs |
| Operation control system | Electrical hydraulic control |
| Engine | |
| Engine model |
CY4B |
| Engine brand | CHAOYANG |
| Emission standard | Euro 5 |
| Power | 120 hp |
| Exhaust | 2544ml |
| Rated speed | 3200rpm |
| Maximum torque | 320N.m |
| Maximum torque speed | 1800rpm-2000rpm |
| Upper Part | |
| Dustbin capacity | 5CBM |
| Dustbin material | High Quality Q345 manganese steel |
| Dustbin type | Arc |
| Welding type | Dustbin full welding (automatic welding) |
| Thickness | Edge:4mm/Bottom: 4mm |
| Other configuration | Rear side loading compactor type. Double tank at tail and side; Suizhou star oil tank;High density hydraulic tubing;Zhongmei multiplex valve; Oil pump;Filler lift cylinder with locking device;Equipped with SIEMENS PLC electronic control system (manual automatic dual purpose) ;Bucket flip mechanism or garbage flip bucket;Tail light,convenient for night operation; Body high profile light;Side light;Working lights;Double pumps and double compression;High pressure filter cup. |
We provide free training for all our clients, both online and live training for option. If you need, we can also send engineers to give training to your at your site.
--- Packing: Waxed or nude, or covered with tarpaulin package.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
ChengLi Special Automobile Co., Ltd, built up in 2005, is the headquarter of CLW Group, which is awarded as China’s Top 500 Private Enterprises, Hubei Top 100 Private Manufacturing Enterprises, China’s famous brand, Hubei province’ famous brand and National high-tech enterprise.
Our main business:
1.Refitting special purpose vehicles.
2.Producing and distributing chassis, including CLW, DONGFENG, FOTON, SINOTRUK, FAW, JAC, JMC, IVECO, and I S U Z U, and etc.
Our leading productions:
1.Water turck
2.Sewage suction truck
3.Garbage truck
4.Road sweeper truck
5.Fuel tank truck
6.High-altitude operation truck
7.Crane truck
8.Dump truck
9.Semi-trailer
10.Concrete mixer truck
11.Wrecker truck
12.Bulk cement truck
13.Chemical liquid truck
14.Wrecker truck
15.Pressure tanker
16. New energy vehicles
And etc, totally more than 300 types special purpose vehicles.
Our main market is 50% domestic and 50% overseas. Our main overseas market covers Asia, North America, South America, Latin America and Africa. We have independent export potence. Our products are directly exported to many countries such as USA, Saudi Arabia, South Africa... more than 100 countries.
Our location is ChengLi Automobile Industrial Park, Zengdu District, Suizhou City, Hubei Province, China. It is just 200km from Wuhan Tianhe International Airport and Wuhan Train Station.
Our quality and strength:
1.Our factory covers an area of more than 1 million square meters. We have more than 8,000 employees, including more than 500 engineers, more than 2,000 skilled workers. We have more than 2000 sets of large production equipment, and more than 200 sets of detection equipment. Our anual production ability is more than 100,000 sets vehicles.
2.we are big manufacturer of special purpose vehicles designated by the Chinese government and enterprises. We have more than 100 independent innovation products obtained national patents. We have passed the certifications of ISO9001-2008, CCC, GJB9001B-2009, ASME, ADR, and etc.
Our slogan is CLW Group, the driving force of the world!
We sincerely welcome clients to visit our factory in Suizhou, and discuss about business cooperation!
1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Welcome to contact me for latest factory direct price!
