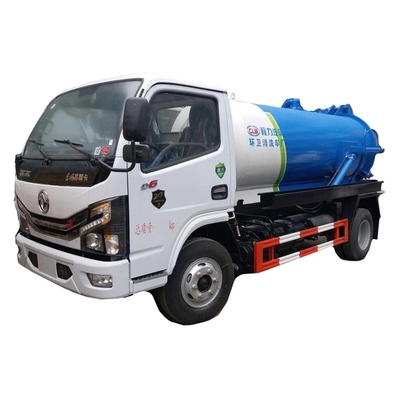

150hp 5cbm Waste Water WC Liquid Transport Truck for sale
Chassis part:
The use of the original factory Dongfeng Small Dorica chassis, national six emission, can be equipped with Cu mins engine.Among them, Yuchai engine with six-gear gearbox, other engines with five-gear gearbox.3308mm wheelbase, 1.8 ton front axle 3.5 ton rear axle.7.00R16 wire tire, single row can flip the cab.With ABS, adjustable headlights, etc.
Upper part:
1, tank adopts Wuhan steel national standard high quality carbon steel plate, using advanced rolling molding process once molding, with high strength corrosion resistance.Tank size (mm): 3400 × 1200, with wave guard plate to the tank.
2, tank hydraulic lift and rear cover hydraulically opened.Easy to dump all kinds of silt and sewage clean, easy to clean up the tank.The sewage suction system is equipped with SK-6 water ring pump or 5-square vacuum pump with strong suction.
The 3, sewage suction system is equipped with 5-square vacuum pump or SK-6 water ring pump, with large suction and far suction range.
Overproof valve is installed on the top of 4, tank to prevent sewage overflow into sewage suction system due to suction.
5, Add liquid filled with self-stop device to prevent tank overflow phenomenon.
| Technical Parameters | |
| Overall | |
| Product name | 5000 Liters Vacuum Pump Sewage Suction Truck |
| Overall dimension(LxWxH) | 5995*1990*2500(mm) |
| Total weight | 8000 kg |
| Rated payload | 5000 kg |
| Curb weight | 3000 kg |
| Maximum speed | 105 km/h |
| Passenger | Single row cabin,2passengers |
| Chassis | |
| Brand | DONGFENG |
| Driving type | 4*2 left hand drive |
| Wheelbase | 3308 mm |
| Fuel type | Diesel |
| Front/Rear axle loading capacity | 1800/3500 kg |
| Front/Rear Track | 1515/1585(mm) |
| Front/Rear suspension | 1315/1420(mm) |
| Tyre model/quantity | 8.50R16/6+1 pcs |
| Approach/Departure Angle(°) | 14/15(°) |
| Leaf spring quantity |
6+1/9+7 |
| Engine | |
| Engine brand | Cu mins |
| Power(hp) | 150hp |
| Displacement | 3760ml |
| Emission standard | Euro3 |
| Vacuum suction system | |
| Tank capacity | 5000 liters |
| Suction depth | ≤8m |
| Time for full suction | ≤5min |
| Basic equipment | Vacuum pump, ball valve, 5-20 m pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc. |
| Optional equipment | Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc. |
Buy sewage trucks, sewer tanker truck, high pressure vacuum suction sewage trucks, welcome to contact me directly, also we sincererly welcome you to come and visit our factory in Suizhou City, Hubei Province,China.
1. ONE YEAR FREE WARRANTY for all our products.
2. LIFETIME MAINTENANCE SERVICES
3. We provide free training for all our clients,both online and live training for option. If you need, we can also send engineers to training you at your site.
--- Packing: Waxed or nude, or covered with tarpaulin package.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
Hubei Dali Special Automobile Manufacturing Co.,Ltd locates in Suizhou city, which is famous as the hometown of ShenLong, the producing area of ancient musical instrument with 16 bells and a famous car city. Our company has car sale corporations, manufacture management centers and over twenty branches in China, including exploitation, manufacture, sale and service. Its main products , including truck car series, van car series, engineering car series, dust cart series, half hanging car series, fire truck series are than 100 types ,having the D level pressure container manufacturing ability. Nowadays, our company has established its leadership in this field in China by large accumulation, technology and advantages in service. The company dedicates to pursuing technology research and application in safety, environment protection, efficiency, automation and economization on energy. We also pay special attention to the beauty, economization and function of the manufactures. Our company follows the conception that the enterprises should base on man, regard consumers the God and benefit from honesty with consumers. It insists on the purpose of management that it depends on quality to exist and creativity to develop. Through it has got the certificates of ISO9001 and CCC; it is improving the quality of its manufactures and the technology. Our company is consistent to develop the new product. Treat talented people as the initial headspring that business enterprise develops. We spend much money cooperating and exchanging technology with domestic associates and with the university and college and, and strengthen the potential development of business enterprise. During the period, we will further extend the joint venture cooperation, usher in the funds with the technique, increase continuously the technique reforms dint degree, and make last scale in current product, top level. The company is extending the production of the annual products 10000 appropriations car and the annual more than 1000 sets of mobile pressure container. We will usher in the advanced production in abroad equipments, making the technique level of the appropriation car contain a quality leap.
1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Welcome to contact me for latest factory direct price!
