Home /Products/Garbage Collection Truck/Building Material Shops Hot Selling Affordable And Durable 6*4 Compressed Compressed Garbage Truck

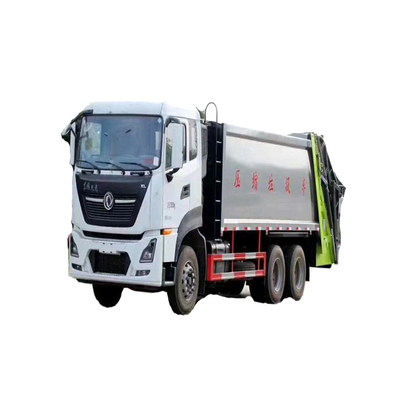

Building Material Shops Hot Selling Affordable And Durable 6*4 Compressed Compressed Garbage Truck

10 pieces
MOQ
$71,293.38(10 - 50 pieces) $69,716.09(>=51 pieces)
Price
Building Material Shops Hot Selling Affordable And Durable 6*4 Compressed Compressed Garbage Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Advertising Company
Showroom Location: Africa Zambia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Take Power, The Gear Pump, Multi-way Valve, Oil Cylinder, The Controller
Condition: New
Drive Wheel: 4X2
Type: Compactor
Transmission Type: Manual
Emission Standard: Euro 3
Fuel Type: Diesel
Engine Capacity: 6234
Size: 10300*2500*3450
Gross Vehicle Weight: 25000
Warranty: 1 Year
Weight (KG): 25 Kg
Country Of Origin: China
Defects Liability Period: 1 Year
Weight: 25tons
Water Tank Capacity: 288litres
Basic Infomation
Payment & Shipping Terms
Packaging Details: Other
Product Description

Main performance description

1. The car body is made of high-strength Q345 manganese steel, which has good toughness and strong corrosion resistance. And adopts arc design, simple and beautiful, large effective volume, outstanding overall structure performance, and strong impact resistance. 2. Q355 high-strength profile is used as the movable guide rail of the garbage pushing board, which occupies a small volume, has a strong pressure capacity, and has a good anti-deformation ability. The sliding block of the push plate is made of highly wear-resistant materials and has a long service life. 3. Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device, can divert the sewage that leaks between the filler and the garbage tank body due to the failure of the sealing strip to the special sewage collection tank, effectively preventing the leakage of sewage The secondary pollution caused.
4. The joint part of the filler and the box adopts adjustable hydraulic locking and full sealing technology, which has good sealing performance. 5. There are multiple safety protection measures such as the sliding board up and the scraper turning up button, the emergency stop button, the interlock switch to prevent the filler from falling, the safety brace, the self-locking function of the filler lifting cylinder, etc., to ensure the safety of personnel. 6. The intelligent control system of the controller is adopted, which can be controlled centrally in the cab. Equipped with automatic and manual dual control modes, it can control the operation of garbage trucks in the cab, both sides of the rear of the vehicle, etc., which is convenient and efficient. 7. Equipped with two-way compression function, high compression efficiency and large garbage loading capacity. When unloading, after the filler is lifted in place, a cycle is automatically realized to remove the garbage remaining in the filler. 8. Equipped with night work lights to facilitate night work for sanitation workers. 9. According to user needs, various garbage lifting devices are equipped. The well-designed lifting support provides the possibility to configure a variety of lifting devices. 10. A sealing cover is set at the opening of the optional filler. The opening and closing of the cover is pneumatically controlled, which is easy to operate and can effectively prevent the secondary pollution of garbage and odor.
【整车技术参数】 【Technical parameters of the whole vehicle】
总质量(kg)
Total mass (kg)
25000
罐体容积(m3)
Tank volume (m3)
额定质量(kg)
Rated mass (kg)
9570,9505,9120,9055
外形尺寸(mm)
Dimensions (mm)
10030，
10230，
10430X2500,2530,2550X3450
整备质量(kg)
Curb weight (kg)
15300,15750
货厢尺寸(mm)
Cargo compartment size (mm)
XX
额定载客(人)
Rated passengers
(person)
准拖挂车总质量(kg)
Total mass of semi-trailer (kg)
驾驶室准乘人数(人)
The number of passengers in the cab (person)
3,2
鞍座最大载质量(kg)
Maximum load of saddle (kg)
接近角/离去角(°)
Approach angle/departure angle (°)
20/13
前悬/后悬(mm)
Front suspension/rear suspension (mm)
1480/2850,1500/2830,1480/3050,1500/3030,1480/3250,1500/3230
轴荷(kg)
Axle load (kg)
7000/18000(二轴组)
7000/18000 (two-axis group)
最高车速(km/h)
Maximum speed (km/h)
89
【底盘技术参数】 【Chassis technical parameters】
底盘型号 Chassis model
DFH1250D4
底盘名称 Chassis name
载货汽车底盘
Truck chassis
商标名称 Brand name
东风牌 Dongfeng
生产企业 manufacturer
东风商用车有限公司
Dongfeng Motor Co., Ltd.
轴数 Number of axles
3
轮胎数 Number of tires
10
轴距(mm) Wheelbase (mm)
4350+1350,5350+1350,5700+1350,4600+1350,4800+1350
轮胎规格
Tire specifications
295/80R22.5 18PR,11.00R20 18PR
钢板弹簧片数
Number of leaf spring
3/10,3/4,9/10
前轮距(mm)
Front track (mm)
2010,2040,2070
燃料种类
Fuel type
柴油 diesel
后轮距(mm)
Rear track (mm)
1860/1860,1880/1880
排放依据标准
Emission standard
GB3847-2005,GB17691-2018国Ⅵ
GB3847-2005,GB17691-2018 EuroⅥ
发动机型号
engine model
发动机生产企业
Engine manufacturer
发动机排量
engine capacity
发动机功率
Engine power
D6.7NS6B290
DDi75E350-60
DDi75E300-60
东风康明斯发动机有限公司
Dongfeng Cummins Engine Co., Ltd.
东风商用车有限公司
Dongfeng Commercial Vehicle Co., Ltd.
东风商用车有限公司
Dongfeng Commercial Vehicle Co., Ltd.
6700
7500
7500
213
257
220

Hubei Huilong Special Purpose Vehicle Co.

Hubei Huilong Special Purpose Vehicle Co., Ltd. was established in 2011, is a special purpose vehicle manufacturer. The factory is located in the special vehicle industry cluster in Suizhou, Hubei, China. Hubei Huilong has the strength of independent research and development, production and sales as a whole. Our main products are semi-trailer series, compressed garbage truck series, sweeper series, aluminum alloy transporter series. Our crawler semi-trailer has more than 40 patents and is the key support object of the 13th Five-Year Plan for economic and social development, and the company aims to develop towards specialization, precision, speciality and newness. With the advantages of market research and product innovation, we develop new products every year to meet the real customer needs. The factory has four digital workshops equipped with modern machinery and equipment, including raw material processing workshop, automatic aluminum can body workshop, assembly workshop and painting workshop. Three production lines and 100 sets of special equipment ensure stable and reliable production.
1. Q:Are you a company or a trading company? A:Hubei Huilong special purpose vehicle Co., Ltd. is one of the largest special purpose vehicle manufacturers in China. 2.Q:Where is your factory? A:Our company is located in Suizhou, Hubei, China. 3.Q:How can I get there?   A:We welcome you to visit the factory for inspection. You can go to Tianhe Airport by plane or take high-speed rail to Suizhou Station directly.    4.Q:What are your terms of payment? A: T/T 5.Q:Will you arrange the shipment of the vehicles? A:  Yes, we will arrange shipment according to the trade terms. 6.Q:What is the lead time?   A:20-25 working days.  For other questions, we will reply to you as soon as possible after receiving your email!
