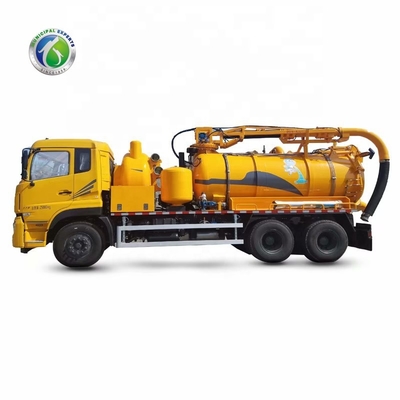

What is the main Application of the Combi Truck and Characteristics?
The suction vehicle is suitable for suction from the various o the sewer man-hole,drain wells and sediment wells and transporting,Meanwhile,it is not only used for suction,transportation sewage,oil stain and waste water at large-scale factories and mines,it also can be used as silt remover for cleaning rills and rivers.
Main Technical Parameter Show Blow:
| Item | Parameters | |
Vacuum System | Vacuum pump | Liquid ring vacuum pump, provides high air flow along with high vacuum levels for removing materials below liquid surfaces. |
Air flow rate | 2800m3/h | |
Rotate speed | Max 1000rpm | |
Pump cooling | Cooling Water tank in stainless steel 1,000L, mounted just behind the drivers cab | |
Telescopic suction boom | Remote controlled, steel material. Swivel in both the vertical and horizontal plane. 270°horizontal rotation, 6m working radius, vertical lift up to 5.5m above ground and 1350mm extension | |
Suction hose | 5", 10m, can be lengthened, with non-return valves |
Shape | Cylindrical shaped tank with U-sectional external stiffening rings. | |
Sludge tank
| Material | Mild steel |
Capacity | Sludge tank 10,000L | |
Shell thickness | 5mm | |
Dish thickness | 5mm | |
Tank inner filter | Separate the sucked wastewater and solid, which protects key parts like pump, valve and hose | |
Working pressure | -0.95bar | |
Tipping cylinder | Front single acting tipping cylinder with safety support, provided for 40° liquid removal. | |
Liquid level indicator | Glass indicator at the rear of tank. | |
Primary shut off | SS float ball prevents overfilling sludge tank. | |
Secondary shut off | Once the tank’s full, ultrasonic level indicator is activated and vacuum pump is closed automatically, no need to shut it down from the control box | |
Full opening rear lid | Hydraulically opening and locking |
As municipal solution specialist,we factory always focus on Environment protection all around the world with high-end european quality and have already passed the safety approval as ISO9001,GS,SGS .Huaian XiangLong special purpose vehicle Co.,Ltd is a listing in Jiangsu Equity Exchange-stock Company,it's powerful symbols in China.
Our selling point is :Customization,High-end quality,Professional service,Innovation keep moving.
