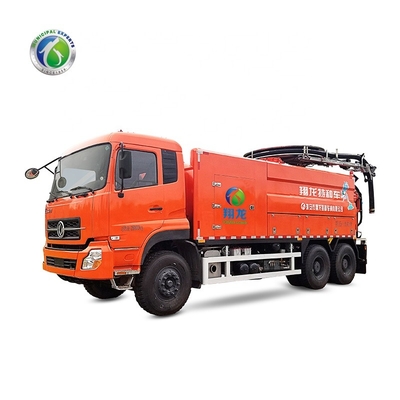

What is the main Application of the Combi Truck and Characteristics?
Application-----
1. With the function of jetting,dredging,pumping back,water recycling,separation,pressing,the vehicle can greatly improve work efficiency,save time and cost by reducing operator number and less downtiome.
2. The vehicle is being widely used in collection,transportation and discharging of waste water,sludge ,sand,bricks from underground sewer pipes,rain-water well,raw oil,also for collection of leaked oil,wasted oil from factories and mines.
Main Technical Parameter Show Blow:
| Item | Parameters | |
Vacuum system | Vacuum pump | Liquid ring vacuum pump, Siemens tech |
Max vacuum level | 97% | |
Air flow rate | 2800m3/h | |
Rotate speed | Max 900r/min | |
Protection | 1. filter 2. Vacuum pressure relief valve | |
Suction boom | Disk type, carry 20m suction hose |
|
Sludge and Water Tank
| Shape | Cylindrical shaped tank with external reinforce rings |
Material | Mild steel | |
Capacity | 9000L sludge tank & 4,000L fresh water tank | |
Shell thickness | 5mm | |
Tipping cylinder | Front tipping and double acting cylinder | |
Safety support | Support the tank to ensure safety when it’s tipped up | |
Sight glasses | 3units are mounted at the rear of the tank | |
Over pressure safety | Over pressure relief valve on tank top | |
Full opening rear lid | Hydraulically opening and locking | |
Inlet and Outlet Valve | Pneumatically and Manual operation | |
Primary shut off | SS float ball prevents overfilling sludge tank. |
Click for more information!!!
Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...
Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…
Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.
What's our factory Professional advantage?
1.We established joint venture with one EURO company in 2003. By introducing high-end municipal trucks design and manufacture philosophy, our trucks meet EURO level with more advancement and stability.
2. Strict quality control process and humanized designed details. Raw material purchased under normative QC. Every process required by manufacture standard. Every detail focuses on humanization.
3. Original chassis from manufacture.
4.Use Liquid ring vacuum pump. Comparing to air cooling vane pump, air flow up to 2800m3/h, -0.97bar vacuum level and long continuous work time due to water cooling type.
3Reverse discharge capability discharges water and leaves sludge, reduces round trip times between drainage well and dumping site.
5.Multiple safety protections, include ultrasonic liquid level indicator, float ball, pressure safety valve at the top of tank and vacuum air lines.
6. Euro trained workers achieve perfect welding quality. Decades of manufacturing experience makes outstanding tank seal performance.
7. All-In-One control panel for safe and easy operation.
8. We introduced series of Painting Equipment. Paint has longer term corrosion resistance, thicker film,better gloss and maximum weather resistance. Whole trucks use two components aqueous paint, which is environment friendly.
As municipal solution specialist,we factory always focus on Environment protection all around the world with high-end european quality and have already passed the safety approval as ISO9001,GS,SGS .Huaian XiangLong special purpose vehicle Co.,Ltd is a listing in Jiangsu Equity Exchange-stock Company,it's powerful symbols in China.
Our selling point is :Customization,High-end quality,Professional service,Innovation keep moving.
